Troubleshooting database tool – SqlClientLogger

This tool logs every call to the database done by the application layer with a stack trace and a time it took to execute the query. The benefits of using this tool is that it prints out a stack trace so it’s easy to locate what code that generates the database call. The logs are written to log4net and should appear in the sites log file.

Download

Download SqlClientLogger

Requirements:

.Net 2.0

Log4Net

Installation

Drop the assembly “SqlClientLogger.dll” to your sites bin/folder

Replace the SqlClient database provider with the logging SqlClient database provider in web.config

<configuration>

  ...

  <system.data>

    <DbProviderFactories>

      <remove invariant="System.Data.SqlClient" />

      <add name="System.Data.SqlClient"

           invariant="System.Data.SqlClient"

           description=".Net Framework Data Provider for SqlServer with logging of executed commands"

           type="SqlClientLogger.DatabaseFactory, SqlClientLogger"/>

    </DbProviderFactories>

  </system.data>

</configuration>

Usage

When the SqlClientLogger is installed on the site it is going to send log4net messages using the logger “SqlClientLogger”.

Log4Net logger levels

DEBUG – prints out database command, stack trace and execution time

INFO – prints out database command and execution time.

WARN – prints out database command, stack trace and execution time the execution time is over 500 ms

Sample of how to configure it in the file

EPiServerLog.config (or where your log4net configuration is)

<log4net>

  ...

  <logger name="SqlClientLogger">

    <level value="DEBUG" />

  </logger>

Duration Filter

Duration threshold can be set in the appSettings in the web.config file for the keys

SqlClientLoggerDurationFilterMs – a threshold for all logged database calls

SqlClientLoggerDurationWarnFilterMs - a threshold for trigger a warning message, the default is set to 500 ms

Example of setting duration threshold to 10 ms and warning threshold to 100 ms

<configuration>

  ...

  <appSettings>

    <add key="SqlClientLoggerDurationFilterMs" value="10"/>

    <add key="SqlClientLoggerDurationWarnFilterMs" value="100"/>

  </appSettings>

Remarks

SqlClientLogger are not going to work with LinqToSql sense it using the SqlClient database providers directly without looking at the configuration. To trace LinqToSql calls please use LinqToSqlLogger.zip

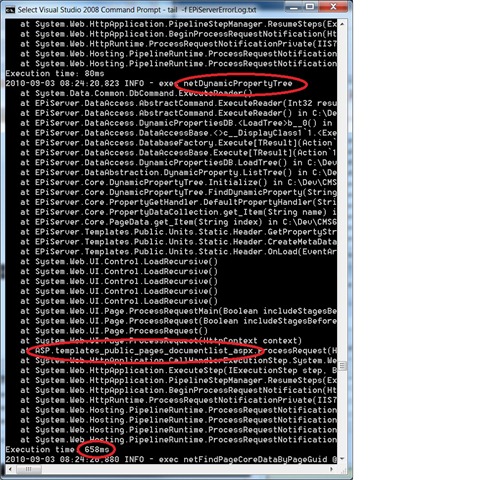

Example of output:

In this example we can see the stored procedure “netPropertyTree” is executed without any arguments are  executed by the user control in Templates/Public/Pages/DodumentList.aspx and its takes 685 milliseconds.
